AdGuard Home HA Setup with Keepalived

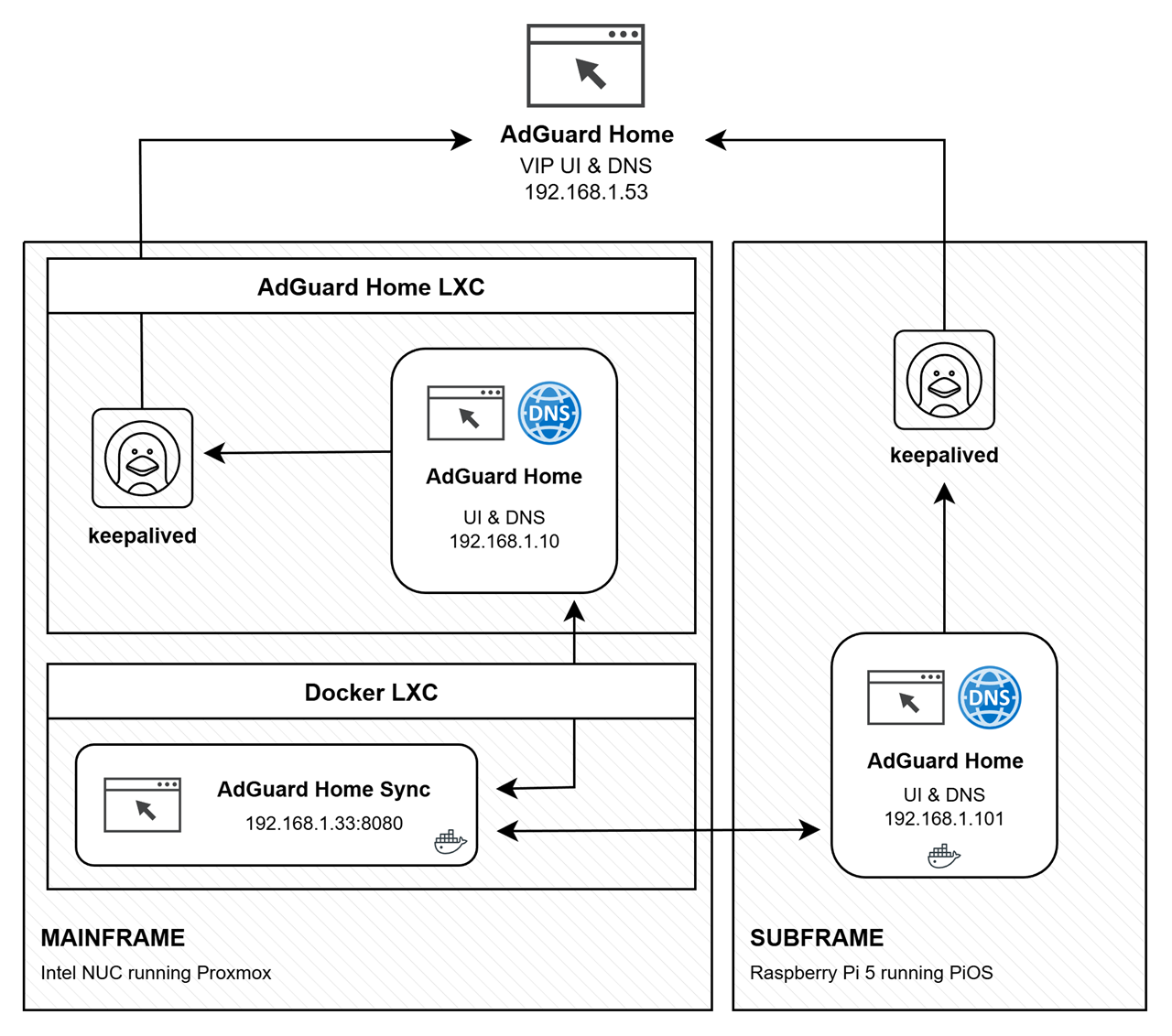

I use AdGuard Home as my DNS (and DHCP) Server. This guide will help you configure Keepalived to provide a floating VIP for high availability between two AdGuard Home nodes: a privileged LXC (Master) and a privileged Docker container (Backup). It includes a health check script to ensure the VIP only moves if AdGuard Home is actually running.

VIP: 192.168.1.53
Master: 192.168.1.10 (LXC on Proxmox)
Backup: 192.168.1.101 (Docker on Raspberry Pi 5)

---

📦 Installation

Install Keepalived and Dependencies

• On both nodes (LXC and Docker container):

  • Update package lists: apt update
  • Install Keepalived: apt install keepalived -y
  • Install libipset13 (required for VIP handling): apt install libipset13 -y

Optional:

• Remove unnecessary packages if running minimal containers: apt autoremove -y

---

Create Health Check Script On Both Nodes

• File: /usr/local/bin/check_adguard.sh
• Example content:

#!/bin/bash
UI_URL="http://127.0.0.1"
DNS_TEST="127.0.0.1"

# 1. Check UI
if ! curl -fs --max-time 2 "$UI_URL" > /dev/null; then
    echo "AdGuardHome UI not reachable."
    exit 1
fi

# 2. Check DNS IPv4
if ! nc -zu -w2 "$DNS_TEST" 53 > /dev/null 2>&1; then
    echo "AdGuardHome DNS not responding."
    exit 1
fi

exit 0

• Make it executable: chmod +x /usr/local/bin/check_adguard.sh
• Test manually: /usr/local/bin/check_adguard.sh && echo OK || echo FAIL

---

Configure Keepalived Global Definitions

• File: /etc/keepalived/keepalived.conf
• Add at the top:

global_defs {
    script_user root
    enable_script_security
}

• Ensures health check script has permissions to run.

---

Define Health Check in Keepalived

• Add the following outside vrrp_instance:

vrrp_script chk_adguard {
    script "/usr/local/bin/check_adguard.sh"
    interval 5           # Run every 5 seconds
    weight -20           # Reduce priority if check fails
}

---

Configure Keepalived on Master (192.168.1.10)

vrrp_instance VI_1 {
    state MASTER
    interface eth0                  # Adjust to Interface
    virtual_router_id 35
    priority 100                    # Higher = Master
    advert_int 1                    # Advertisement interval in seconds
    authentication {
        auth_type PASS
        auth_pass 12345678          # Must match Backup
    }
    virtual_ipaddress {
        192.168.1.53                # Floating VIP
    }
    track_script {
        chk_adguard                 # Reference Health Check
    }
    unicast_src_ip 192.168.1.10
    unicast_peer {
        192.168.1.101
    }
}

---

Configure Keepalived on Backup (192.168.1.101)

vrrp_instance VI_1 {
    state BACKUP
    interface eth0                  # Adjust to Interface
    virtual_router_id 35
    priority 90                     # Lower = Backup
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 12345678          # Must match Master
    }
    virtual_ipaddress {
        192.168.1.53                # Floating VIP
    }
    track_script {
        chk_adguard                 # Reference Health Check
    }
    unicast_src_ip 192.168.1.101
    unicast_peer {
        192.168.1.10
    }
}

---

Enable and Start Keepalived

• On both nodes:

  • Enable service: systemctl enable keepalived
  • Start service: systemctl start keepalived

• Verify VIP is assigned:

  • ip addr show eth0 | grep 192.168.1.53

• Test failover:

  • Stop master Keepalived: systemctl stop keepalived
  • Backup should take VIP automatically.

---

Set DCHP Option 6 to VIP

• On both nodes:

  • File: /opt/AdGuardHome/AdGuardHome.yaml
  • Add:

dhcp:
  enabled: true
[...]
    options:
      - 6 ips 192.168.1.53

• Ensures VIP is sent has the DNS server.

---

Optional Cleanup

• Remove old or unused packages/images:

  • apt autoremove -y
  • docker system prune -f (for Docker host)

---

✅ Completion Note

• Keepalived installed and configured on both nodes.
• Floating VIP 192.168.1.53 active only if AdGuard services are running.
• Health check script ensures automatic failover if AdGuard UI or DNS fails.
• Persistent configuration provides high availability for your DNS/DHCP services.

🗑️ Uninstall / Revert Keepalived HA Setup

This section explains how to safely remove Keepalived, the health check script, and revert the VIP configuration on both nodes.

---

Stop Keepalived Service

• On both Master (LXC) and Backup (Docker container):

systemctl stop keepalived
systemctl disable keepalived

• Stops Keepalived immediately
• Disables automatic start on boot

---

Remove Health Check Script

• Delete the script from both nodes:

rm -f /usr/local/bin/check_adguard.sh

• Optional: verify removal:

ls -l /usr/local/bin/check_adguard.sh

• Should return no such file

---

Remove VIP from Network Interface

• On both nodes, if the VIP is still assigned:

ip addr del 192.168.1.53/24 dev eth0

• Replace eth0 with the actual network interface if different
• Verify removal:

ip addr show eth0 | grep 192.168.1.53

• Should return nothing if successfully removed

---

Remove Keepalived Package

• On both nodes:

apt remove --purge keepalived -y

• Removes Keepalived and its configuration files
• Optional cleanup:

apt autoremove -y

---

Optional Docker Cleanup (Backup Node)

• Remove any lingering Docker containers/images if Keepalived ran inside a container:

docker rm -f keepalived
docker rmi -f keepalived-image-name
docker system prune -f

---

✅ Completion Note

• Keepalived service removed and disabled
• Health check script deleted
• Floating VIP 192.168.1.53 removed from all interfaces
• System restored to pre-HA state without affecting AdGuardHome installation
